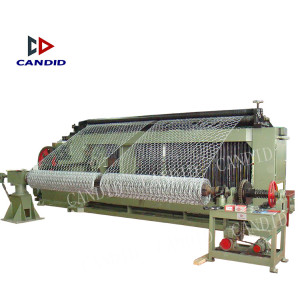

Automatic High Efficient Hexagonal Wire Netting Machine
Automatic High Efficient Hexagonal Wire Netting Machine
| Categories | hexagonal wire mesh weaving machine |
|---|---|
| Brand | CANDID |
| Model | L-CNG4300 Hexagonal Wire Netting Machine |
| After-sales Service Provided | Engineers available to service machinery overseas |
| weight | 15T |
| Condition | New |
| Place of Origin | Zhejiang, China(mainland) |
| wire diameter range | 2.0-4.0 mm |
| color | blue ,green |
| Brand Name | CANDID |
| Unit Price | US $ 45000-75000 / set |
| FOB port | Shanghai,Ningbo |
| Terms of Payment | L/C, T/T |
| Update Time | Apr 19,2024 |
Detailed Product Description: The series Hexagonal Wire Netting Machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, gabion coated wire is available.
We can manufacture Hexagonal Wire Netting Machine according to customer's request.
| 1.Mesh Size’s range from 50*70 mm To 176*200 mm； 2.We can design the machine to produce the mesh size according to customer’s request .But the mesh size should in the range of 50*70 mm To 176*200 mm； 3.Range of galvanized wire:2.0mm～4.0mm(for different mesh size pls find the parameter in the specification)； 4.Range of PVC coating galvanized wire: ≦5.0mm； 5.Our motor adopt Frequency Motor；
|
|---|
Main Technical Parameter
Mesh Size (mm) | Max. Breadth (mm) | Max.Dia of Weaving wire(mm) | Max.Dia of Bordering Wire(mm) | Max Weaving- vein No. | Power (kw) | Theoretical Manu- facturing speed | Exterior Size(m) | Weight (T) | |
|---|---|---|---|---|---|---|---|---|---|
Mesh Hole Count/Minute | Meter/ Hour | L×W×H | |||||||
60×80 | 2300 | 2.7 | 4.0 | 3/5 | 11 | 42 | 165 | 5.2*1.4*2.4 | 13 |
3300 | 2.7 | 4.0 | 3/5 | 15 | 42 | 165 | 6.2*1.4*2.4 | 14 | |
4300 | 2.7 | 4.0 | 3/5 | 30 | 42 | 165 | 7.2*1.4*2.4 | 15 | |
80×100
| 2300 | 4.0 | 4.0 | 3/5 | 11 | 42 | 225 | 5.2*1.4*2.4 | 13 |
3300 | 4.0 | 4.0 | 3/5 | 15 | 42 | 225 | 6.2*1.4*2.4 | 14 | |
4300 | 4.0 | 4.0 | 3/5 | 30 | 42 | 225 | 7.2*1.4*2.4 | 15 | |
100×150 | 2300 | 4.0 | 4.0 | 3/5 | 11 | 42 | 225 | 5.2*1.4*2.4 | 13 |
3300 | 4.0 | 4.0 | 3/5 | 15 | 42 | 225 | 6.2*1.4*2.4 | 14 | |
4300 | 4.0 | 4.0 | 3/5 | 30 | 42 | 225 | 7.2*1.4*2.4 | 15 | |
160×180 | 2300 | 4.0 | 4.0 | 3/5 | 11 | 42 | 250 | 5.2*1.4*2.4 | 13 |
3300 | 4.0 | 4.0 | 3/5 | 15 | 42 | 250 | 6.2*1.4*2.4 | 14 | |
4300 | 4.0 | 4.0 | 3/5 | 30 | 42 | 250 | 7.2*1.4*2.4 | 15 | |
176×200 | 2300 | 4.0 | 4.0 | 3/5 | 11 | 42 | 250 | 5.2*1.4*2.4 | 13 |
3300 | 4.0 | 4.0 | 3/5 | 15 | 42 | 250 | 6.2*1.4*2.4 | 14 | |
4300 | 4.0 | 4.0 | 3/5 | 30 | 42 | 250 | 7.2*1.4*2.4 | 15 |
Product Show

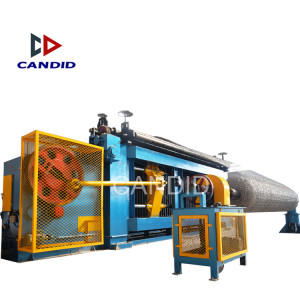

Main Machine:
Auxiliary:
Wire Spiral Coiling Machine
Netting Roll Winding Machine
Wire Tension Machine
Wire Pay-off
Electric control box
Applications
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the Hexagonal Wire Netting Machine away from unexpected damages. We ensure that our clients will get their satisfying Hexagonal Wire Netting Machine.
