Candid High quality Annealing Furnace

Annealing Furnace

Please do send inquiry to our email  :zmec@china-equipments.com

Main Technical Parameter:

1.1. Model: RJ-90-9 (2 tubes)

       Power supply: Electricity

       Capacity: 2.0T/8hours

       Power: 70kw

1.2. Furnace Body

       5mm Q235 board furnace shell

       Lightweight firebrick Internal liner

       Holocellulose alumina silicate keeping temperature

       Heating element: Cr20Ni80

1.3. Furnace Tube

       Thickness: 8mm, Dia.: 800mm, high: 1200mm

       Material: Stainless Steel

1.4. Working Process of Annealing Wire:

      a. Two hours heating to 650°C-700°C

      b. Keeping Temperature 650°C-700°C for 2 hours

      c. Keep the tube in the furnace, cooling for 4 hours till the temperature is about 300°C

      d. Taking out of the tube put another one in

      e. When the tube temperature is below 170°C, take the wire out

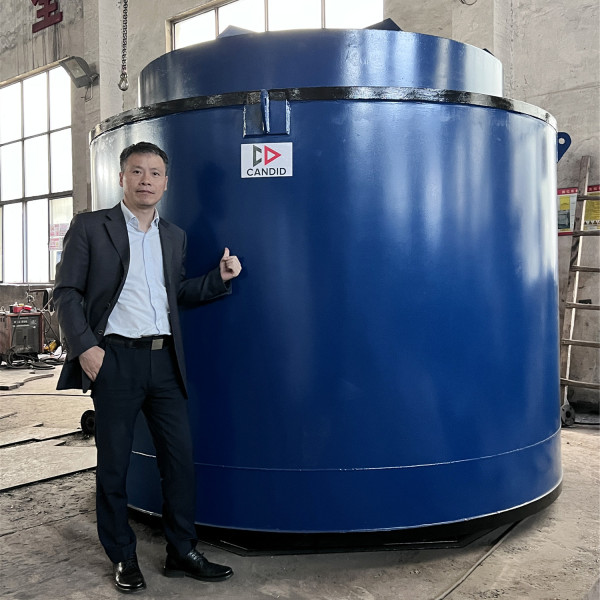

Product Show

We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the Annealing Furnace away from unexpected damages. We ensure that our clients will get their satisfying Annealing Furnace.
