Hexagonal Mesh Weaving Machine for Gabion Machine/Gabion Mesh Machine

Hexagonal Mesh Weaving Machine for Gabion Machine/Gabion Mesh Machine

Hexagonal Mesh Weaving Machine for Gabion Machine/Gabion Mesh Machine
CategoriesGabion Machine
BrandCANDID
Model4700 (mm)
Max.Dia of Weaving wire (mm)3.2
Max.Dia of Bordering wire (mm)4.0
Max Weavingvein NO.3/5
Power (kw)30
Mesh Hole netting Count/Minute42
Meter/Hour170
Exterior Size (m)7.2*1.4*2.4
Weight (T)15
FOB portShanghai Tianjin Ningbo
Terms of PaymentL/C, D/A, D/P, Western Union, T/T
Update TimeMay 30,2024
Detail Information
Hexagonal Mesh Weaving Machine Specifications
Max.Dia of Weaving wire (mm)            3.2
Max.Dia of Bordering wire (mm)          4.0
Max Weavingvein NO.                          3/5
Power (kw)                                            30
Mesh Hole netting Count/Minute        42
Meter/Hour                                          170
Exterior Size (m)                                   7.2*1.4*2.4
Weight (T)                                            15
Advantages of Hexagonal Mesh Weaving Machine
The Hexagonal Mesh Weaving Machine is the most important machine for the Gabion machine production line,  It  is  designed  to  braiding the crossing wire and spiral wire to make high quality wire mesh automatically and continuously, which saves the cost of labor and it is easy to be winding, cut, pressed and transported.

The Hexagonal Mesh Weaving Machine could produce different size of wire mesh , and it ranges from 50*70 mm to 176*200 mm, which depends on the customer’s request so does the width. Generally one machine adopts to produce one size wire mesh, but we can also realize one machine produce two sizes of mesh. Common situation applies: mesh size: 60*80/80*100mm, width: 4700mm.

The Hexagonal Mesh Weaving Machine is equipped with an emergency stop switch,it could check if the wire mesh is complete or not which means the device will lay slightly on the wire mesh when the main machine is running rightly, and if it’s not, it will drop off so that to trigger the stop function to save the wire mesh.
Famous brand auto lubricating system of Hexagonal Mesh Weaving Machine reduces the waste of oil, and extends the working life of friction structure

In a word, the Hexagonal Mesh Weaving Machine is the most machine for the production of gabion mesh. And Candid is focusing on innovating technology and providing better services to our customers!

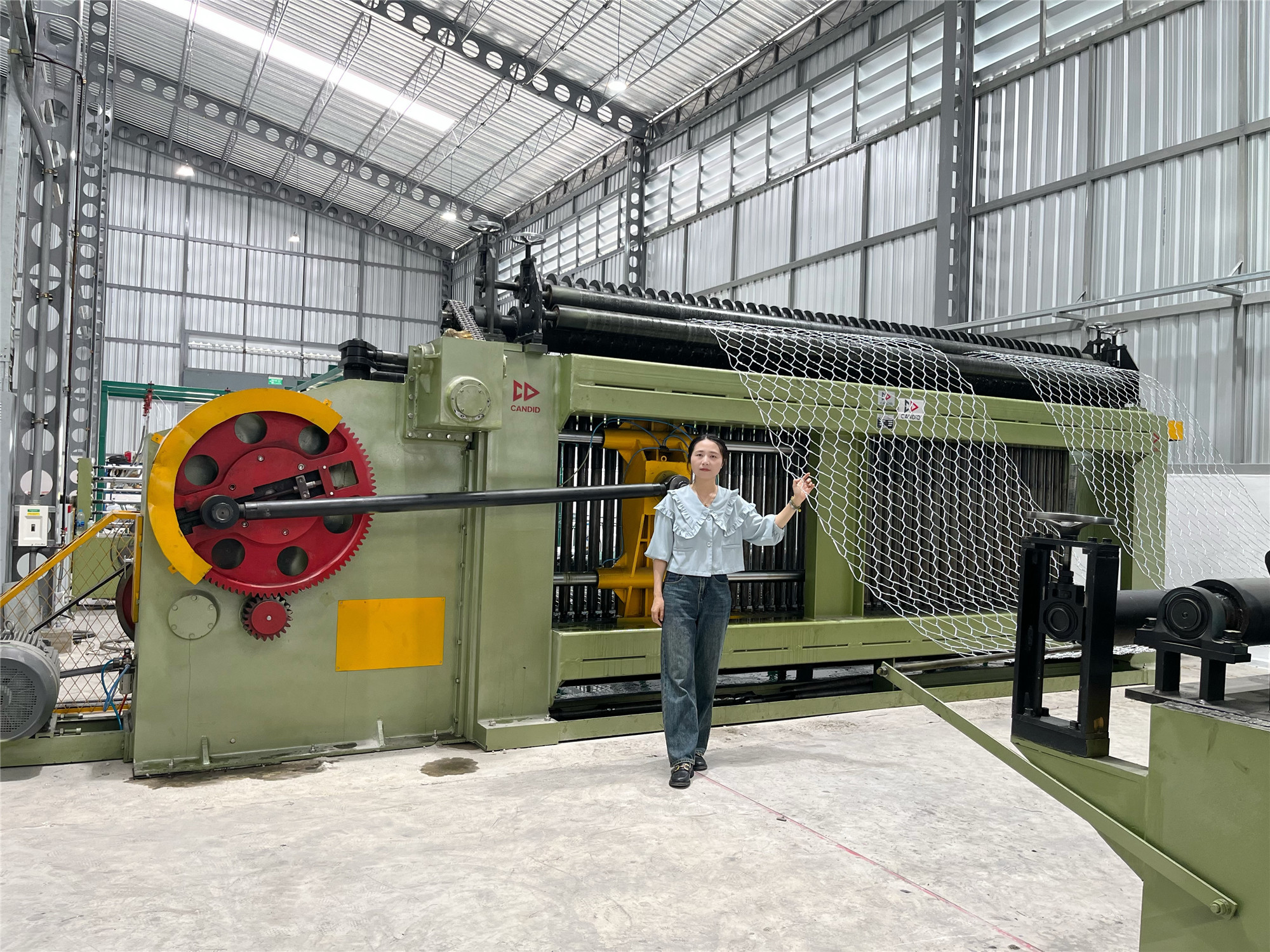

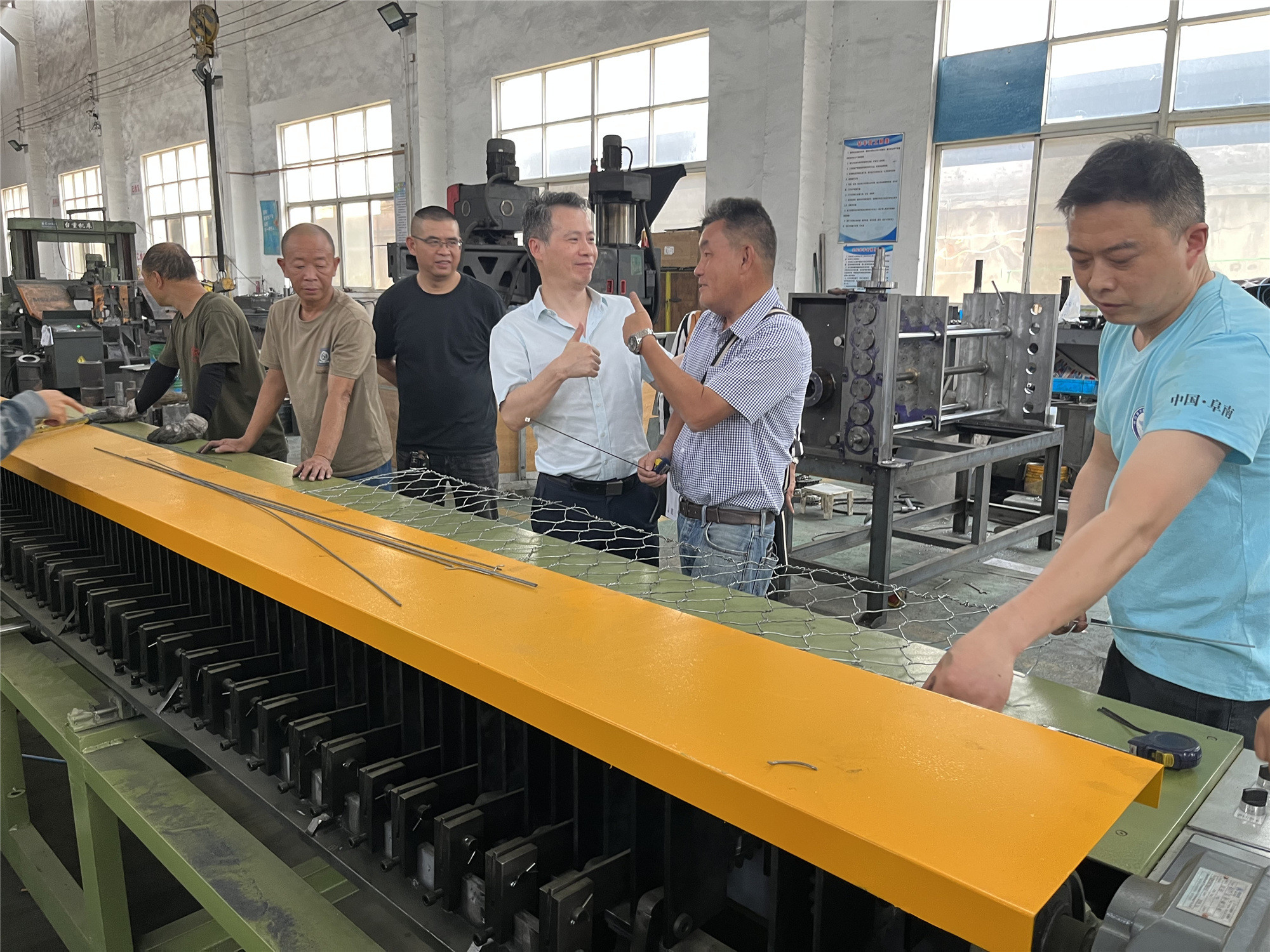

Hexagonal Mesh Weaving Machine Application Site


Hexagonal Mesh Weaving Machine Products

Hexagonal Mesh Weaving Machine FAQs

Q: What is your gabion machine type?

A: We offer both mechanical and hydraulic type gabion machine.

Q:What is the raw material for netting?
A: Low-carbon steel wire, heat-treated, zinc-coated, PVC coated wire.
Q: How many mesh size can one machine produce?
A: Usually one machine produce one mesh size. But Max. two mesh size include: 50*70mm with 100*150mm, 60*80mm with 120*150mm, 80*100mm with 160*180mm. Without to change the parts of main mesh sizing roller and disk wheel.
Q: What is number of twists for netting?
A: 3/5, our machine could produce 3 twists and 5 twists.
Q: How to count the net length in one hour or in one shaft?
A: Our machine has two types meter counting device, one is mechanical type installed in common gabion machine and another one infrared is ray induction type installed in PLC gabion machine.
